Patent Pending:  SIMple™ Fit Gears are protected under all international patent laws.



SIZE CHECK: LENS GEAR DATABASE



EACH GEAR NOW INCLUDES OUR NEW CINESTOP - FREE!



Say goodbye to 3D printed plastic gears and never heat a Delrin gear in the oven again!  Take the guessing game out of fitment issues and say hello to the SIMple Fit Gear!



The SIMple Fit Gear is the worlds first seamless follow focus gear that combines an all-aluminum gear with an interchangeable compressible insert, allowing you to fit any lens. SIMply select the insert size that measures closest to your lens body diameter and attach the gear. It’s a SIMple, elegant, flexible solution with the professional durability and performance of an aluminum gear!



This kit will fit lenses with a focus barrel that measures between 74mm to 77mm in diameter, based on a compression value of -1mm when the rubber insert is fully compressed to fit.  For example, if your lens barrel measures 76.2mm, you would select and install the 76mm insert.  f required, please use the supplied shimming tape to fine tune the fitment.



Each kit comes with the following:

1 x Mod 0.8 aluminum follow focus gear / 10mm width / Optional 20mm width

4 x Compressible insert (74mm, 75mm, 76mm, 77mm)

1 x Shimming Tape



The outer diameter of size XL aluminum gear is 95mm.



SIMple Instructions:

CAUTION: DO NOT FORCE A GEAR ONTO A LENS



DOWNLOAD MEASUREMENT RULER if you do not have a caliper to measure.  Please do not guess on the the measurement of your lens.



Watch Mark Holtze' video on how SIMple it is to install Follow Focus Gears on any lens using our SIMple Fit Gears! CLICK HERE



1:  Using a caliper or measuring tape, measure the diameter of your focus ring.



2:  Once you have determined the diameter of your focus ring, select the insert that is closest to your diameter.  For example, if your lens barrel measures 76.2mm, you would select and install the 76mm insert.  Install the insert into the precision channels in the aluminum gear.



3:  VERY IMPORTANT.  Set your focus to infinity on the lens.  Failure to set your focus to infinity can result in damage to your helicoid.



4:  With your lens sitting upright and focus set to infinity, install the focus gear from the top-down, pushing gently and evenly until it comes to rest at your desired spot on the focus ring.  If installing from the top-down is not possible, you can install from the bottom, however, it is very important to set your focus to infinity before putting any upward pressure.



LIABILITY WAIVER/DISCLAIMER



YOU, AS THE PURCHASER, HEREBY ACKNOWLEDGE AND AGREE THAT THE CONSIDERATION WHICH YOU PAID TO 2725092 ONTARIO INC. DOING BUSINESS AS SIMMOD LENS CANADA (REFERRED TO HEREIN AS “SIMMOD”) DOES NOT INCLUDE ANY CONSIDERATION BY SIMMOD OF THE RISK OF CONSEQUENTIAL, INDIRECT OR INCIDENTAL DAMAGES WHICH MAY ARISE IN CONNECTION WITH YOUR USE OF, OR INABILITY TO USE, THE SIMMOD SYSTEM™ OR ANY PRODUCTS OR SERVICES THEREUNDER INCLUDING, WITHOUT LIMITATION, GEARS, RINGS, CAPS, CONVERSION KITS, FILTERS AND GREASE (THE “PRODUCTS”) ON YOUR PROPERTY AND/OR EQUIPMENT.



SIMMOD (AND, IF APPLICABLE ITS RESELLER) WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION LOST PROFITS, LOSS OF BUSINESS, LOSS OF USE, DAMAGE TO PROPERTY, SUITS BY THIRD PARTIES, OR COST OF COVER INCURRED BY YOU ARISING OUT OF OR RELATED TO YOUR PURCHASE OR USE OF, OR INABILITY TO USE, THE PRODUCTS OR THE SERVICES OF SIMMOD, UNDER ANY THEORY OF LIABILITY, WHETHER IN AN ACTION IN CONTRACT, STRICT LIABILITY, TORT (INCLUDING NEGLIGENCE) OR OTHER LEGAL OR EQUITABLE THEORY, EVEN IF SIMMOD (OR, IF APPLICABLE, RESELLER) KNEW OR SHOULD HAVE KNOWN OF THE POSSIBILITY OF SUCH DAMAGES AND, AS SUCH, YOU HEREBY RELEASE SIMMOD FROM ANY AND ALL SUCH LIABILITIES. WITHOUT IN ANY WAY LIMITING THE FOREGOING, THE BUYER HEREBY ACKNOWLEDGES THAT SIMMOD SHALL NOT BE LIABLE FOR ANY DAMAGE WHATSOEVER TO YOUR PROPERTY AND/OR EQUIPMENT ON WHICH THE PRODUCTS ARE USED. YOU SHALL BE SOLELY RESPONSIBLE FOR ANY DAMAGE CAUSED TO YOUR PROPERTY AND/OR EQUIPMENT AS A RESULT OF THE USE OF THE PRODUCTS THEREON AND YOU HEREBY ASSUME ALL RISK IN RELATION THERETO. YOU HEREBY ACKNOWLEDGE THAT ANY USE OF THE PRODUCTS IN RELATION TO YOUR PROPERTY AND/OR EQUIPMENT SHALL BE AT YOUR SOLE AND EXCLUSIVE RISK. IN ANY EVENT, THE CUMULATIVE LIABILITY OF SIMMOD (OR, IF APPLICABLE, ITS RESELLER) FOR ALL CLAIMS WHATSOEVER RELATED TO THIS PRODUCT OR THE SERVICE WILL NOT EXCEED THE PRICE YOU PAID FOR THIS PRODUCT.



THE LIMITATIONS SET FORTH HEREIN ARE INTENDED TO LIMIT THE LIABILITY OF SIMMOD (AND, IF APPLICABLE, ITS RESELLER) AND SHALL APPLY NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY LIMITED REMEDY. [1883846/1] THIS DISCLAIMER/WARRANTY STATEMENT SHALL BE GOVERNED BY AND CONSTRUED IN ACCORDANCE WITH THE LAWS OF THE PROVINCE OF ONTARIO AND THE FEDERAL LAWS OF CANADA APPLICABLE THEREIN, EXCLUSIVE OF ANY CONFLICT OF LAWS PRINCIPLES. THE UNITED NATIONS CONVENTION ON CONTRACTS FOR THE INTERNATIONAL SALE OF GOODS SHALL NOT APPLY.

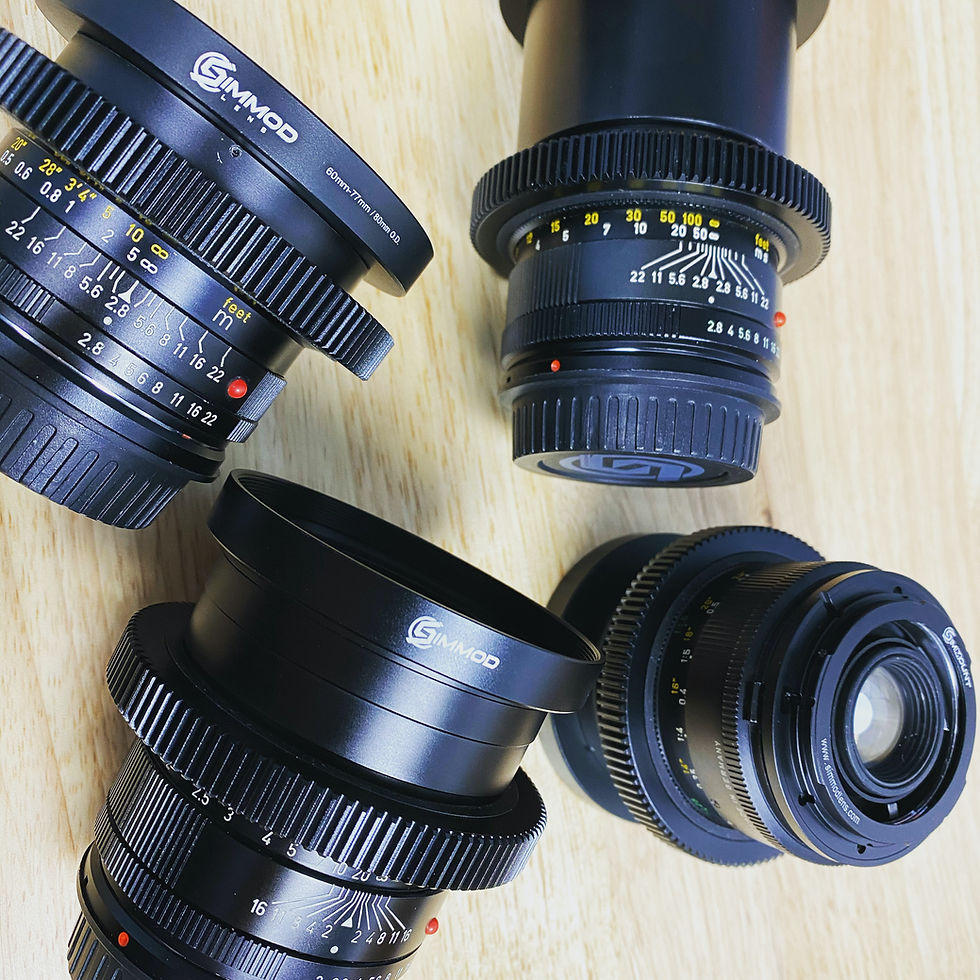

SIMple Fit Follow Focus Gear - X-Large (XL)

$65.00Price

    ***Please allow 3-5 business days for engraving***



    Do you have a custom design or logo you'd like on your caps? Send it to design@simmodlens.com with your order number in the subject line.



    Special Instructions:

    • Requests to change lens information and data will not be accepted once an order is submitted for processing and engraving.

    • Please leave notes and instructions for EACH cap in the "Additional Info" Section.

    • If you're sending us a custom design file, please let us know by selecting the corresponding options or simply indicate that in your instructions.

    • If you do not see your focal length or f.stop in the pull-down menu, DO NOT select the closest number.  Please leave the exact info in the "Additional Info"  Section

    • If you will be submitting a custom design file, please note that on the order.

    • For custom designs, please download this Illustrator TEMPLATE and export as a transparent (no background) PNG file.  Email the design file to design@simmodlens.com with your order number in the subject line.



    Watch Mark Holtze's video to learn more about the SIMMODING process: VINTAGE LENSES FOR VIDEO



    Our Rear EF caps utilize a 1mm thick anodized aluminum top plate, allowing us to custom engrave to your specifications. Functional and stylish.



    Want a matching Engraved Front Cap? Check them out here!



    If you do not see a brand or focal length you are looking for, simply select OTHER and leave us a note.

    Product Name

    $25.00

    Options Title

    Custom Text Field Question

    Upload Design
    Home Decor
    Please check all the fields above.
